Panasonic CCTV

Weather Proof Super Speed Dome Camera (WV-CW 970)


Features

  • IP66 rated water and dust proof.
  • Super Dynamic III: The new Pixel Based 160x Dynamic Range Expansion technology with area free natural contrast correction.
  • Higher resolution of 540 TV lines at colour mode, and 570 TV lines at B/W mode.
  • Minimum illumination of 0.5 lux at colour mode, and 0.04 lux at B/W mode (Sens. up; off, AGC High).
  • Day-Night: Switches between colour mode and B/W mode automatically or manually.
  • 30x optical zoom lens (3.8 - 114 mm) plus 10x digital zoom, total 300x zoom.
  • Panning speed of max. 400°/s at preset mode and 0.065°/s super fine control at manual mode.
  • Multiplex-coaxial or RS-485 data communication.
  • Four alarm inputs and two output terminals.
  • 16 alphanumeric character display.
  • Internal/Line-lock/Multiplexed Vertical Drive (VD2) synchronization.
  • Built-in fan/heater for temperature changes of -40°C ~ +50°C.
  • Built-in sun shield permits camera locations in direct sunlight.



Vandal Proof Super Dynamic III Colour Dome Camera
(WV-CW 480)

Features

  • IP66 Standard Water and Dust Proof
  • Dehumidification Device Withstands Humidity
  • Die cast aluminum body withstands severe shocks
  • Super Dynamic III equipped, 24-hour highly reliable surveillance
  • Pixel Based 160x Dynamic Range
  • Horizontal resolution of 540 TV lines
  • Day/Night Switching
  • Full colour images at 0.6 lux
  • Black and white images at 0.08 lux
  • Scene Change Detection
  • Adaptive Digital Noise Reduction
  • Colour Processing Enhancements
  • Auto Back Focus (ABF)
  • Auto Image Stabilizer

Video Motion Detector



Colour Dome Camera (WV-CF 284 / WV-CF 294)

Features

  • Adaptive Black Stretch: Transforms shadows and dark areas into natural and crisp images in real time
  • ABF: Auto Back Focus adjustment (WV-CF294 only)
  • Day/Night function allows use in low situations (No IR filter shifting)
  • Super sensitivity of 0.9 lux in colour mode
  • 540 TV lines resolution
  • Signal to noise ratio of 50dB
  • Built-in 3.6x variable-focal lens (WV-CF294)
  • Built-in 2x variable-focal lens (WV-CF284)



Colour Surveillance Camera (WV-CP 280)

Features

  • 1/3-type CCD pick-up element featuring 752 (H) x 582 (V) pixels.
  • Newly-developed Digital Signal Processor (DSP).
  • Higher horizontal resolution of 540 TV lines in colour mode.
  • Adaptive Black Stretch feature transforms shadows and dark areas into natural and crisp images in real time.
  • Minimum illumination of 0.8 lux in colour mode with F1.4 optional lens.
  • Day/Night function allows use in low light situations (No IR filter shifting)
  • Accuracy improvement of Auto-Tracing White Balance (ATW).
  • Back Light Compensation (BLC).
  • Automatic Light Control (ALC).
  • Electronic Light Control (ELC) enables the use of inexpensive fixed iris lenses for more cost effective systems.

Line-lock capability for roll-free pictures during systems operation switching.

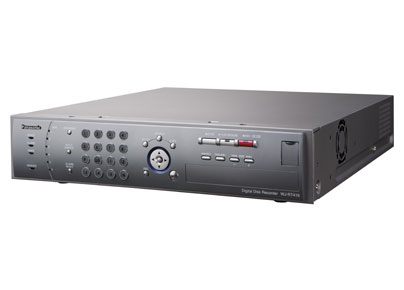

Digital Disk Recorder (WJ-RT416)

Features

  • Record all 16 cameras at 25 ips.
  • MPEG-4: High quality and high compression technology for economical recording
  • Six hard disk drives can be installed, max. 3TB (500GB x 6) disk capacity. (Use of 500GB HDD is future option.)

Supports multiplexed video, control data and VD2 sync over the coax (4ch default, additional 4ch by optional board WV-PB4164) with RS-485 camera control (channel 9 - 16)
